Hikvision DS-2CD2543G0-IS 4MP Outdoor Network Mini Dome Camera with Night Vision & 2.8mm Lens (Ivory)
₹ 26,999.00

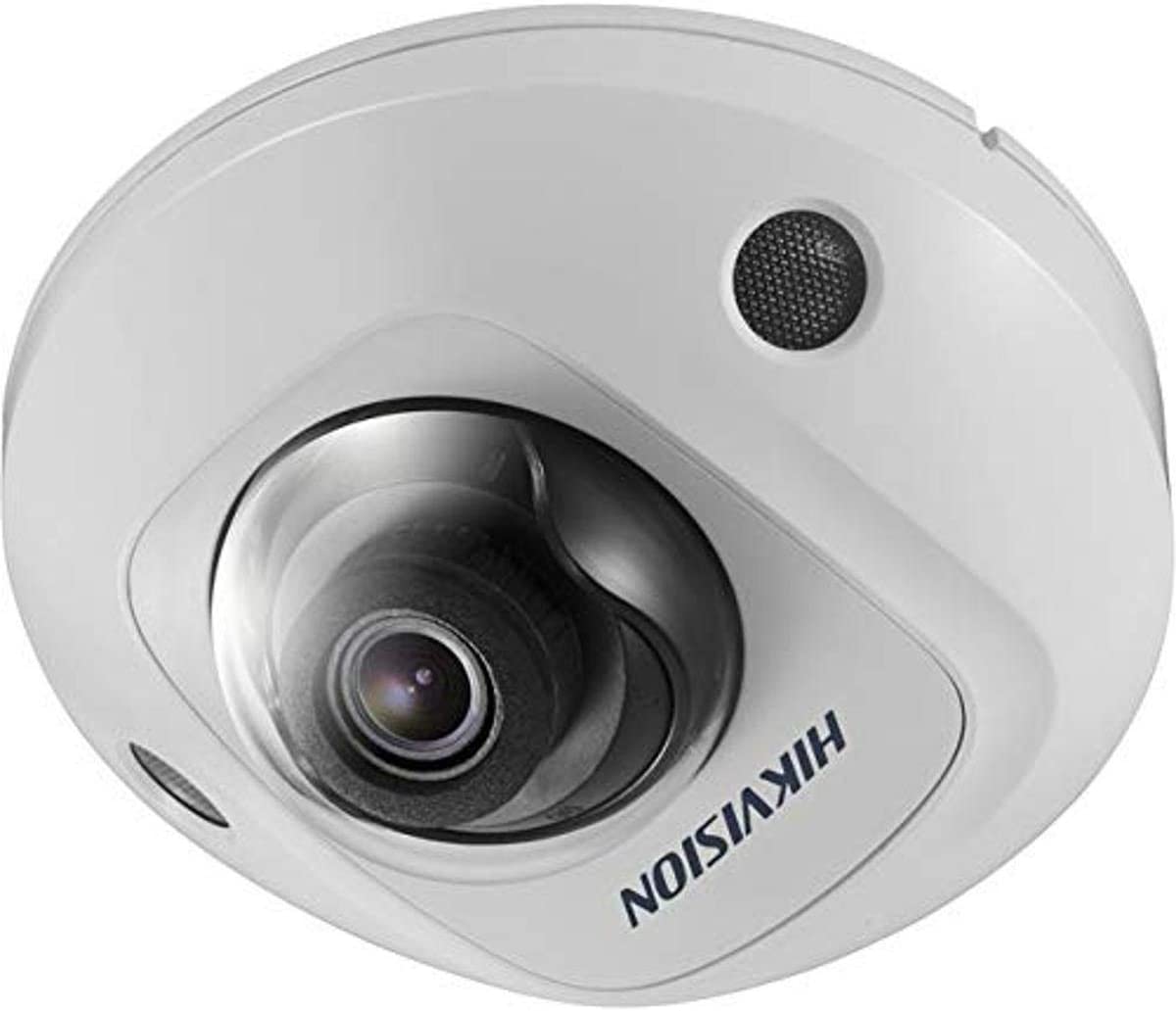

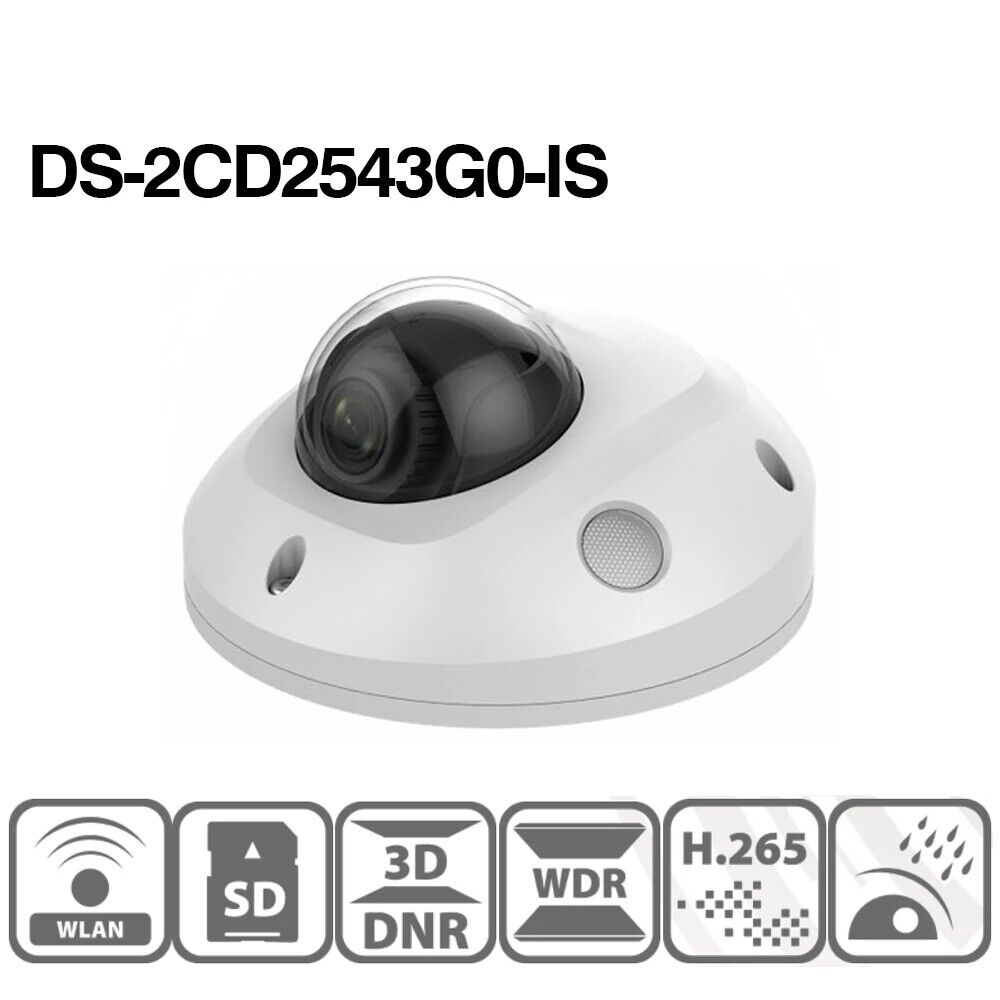

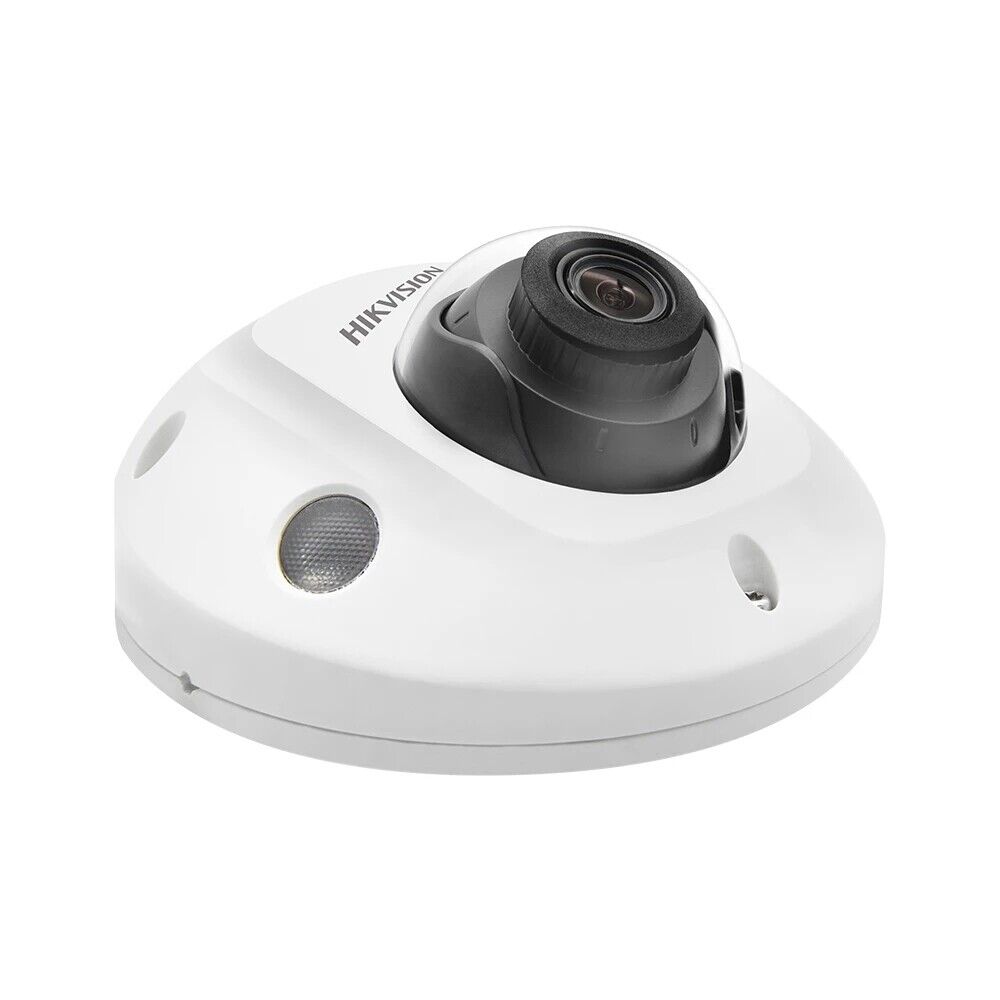

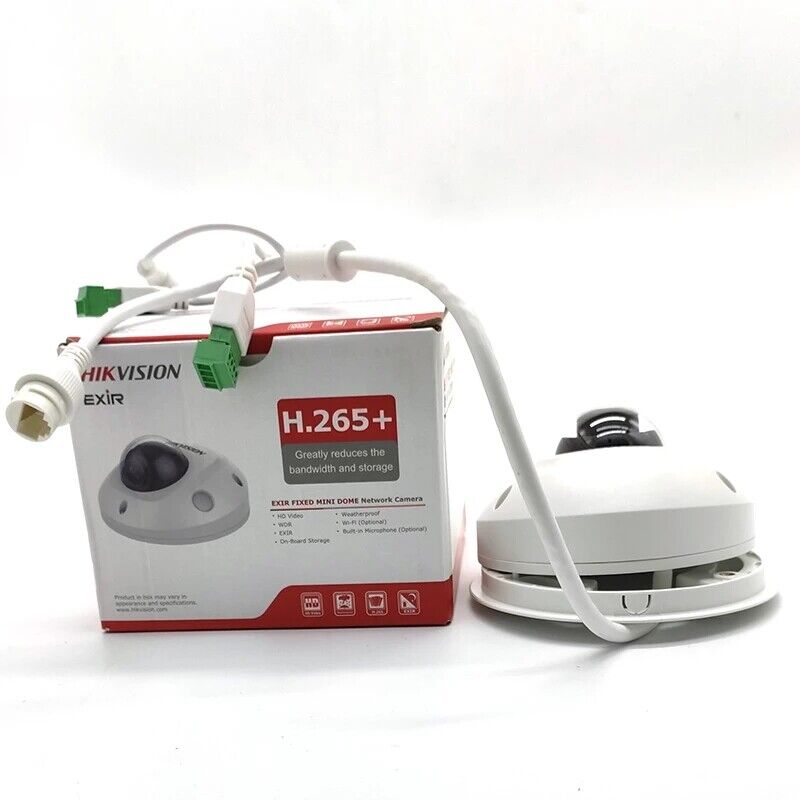

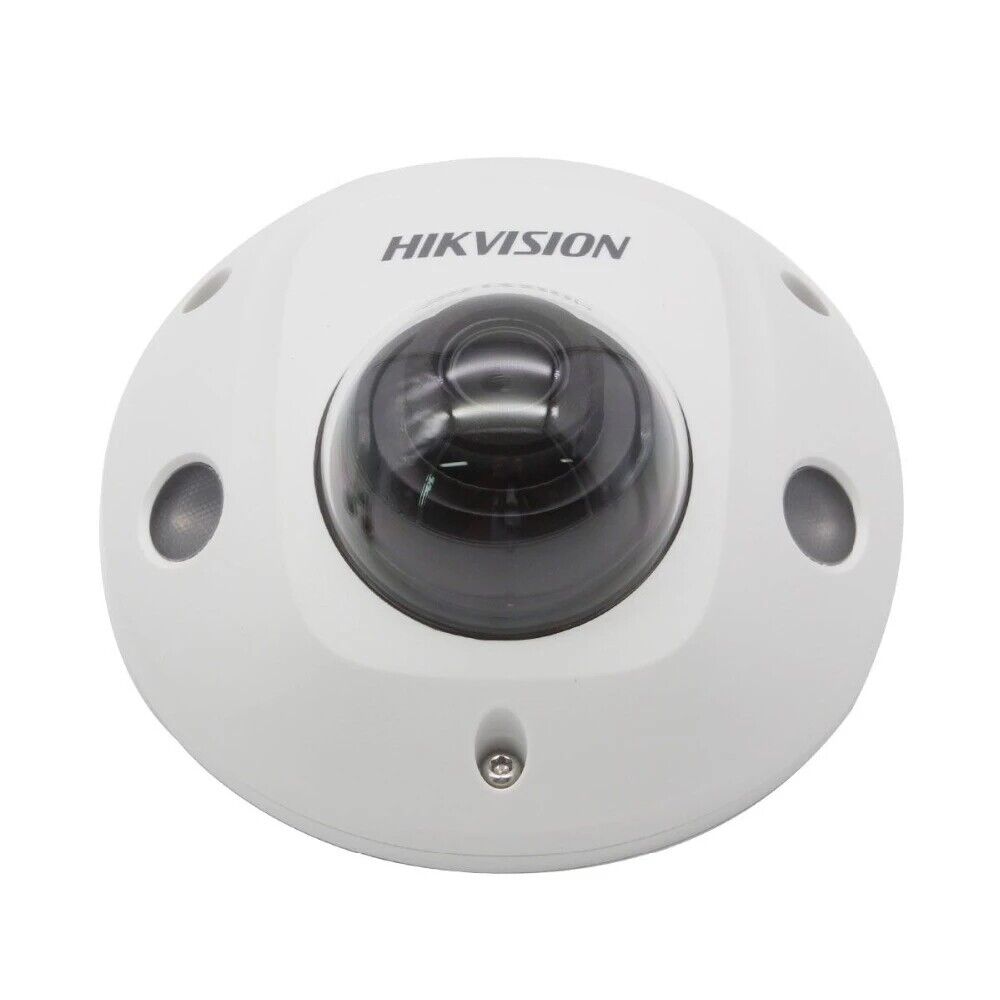

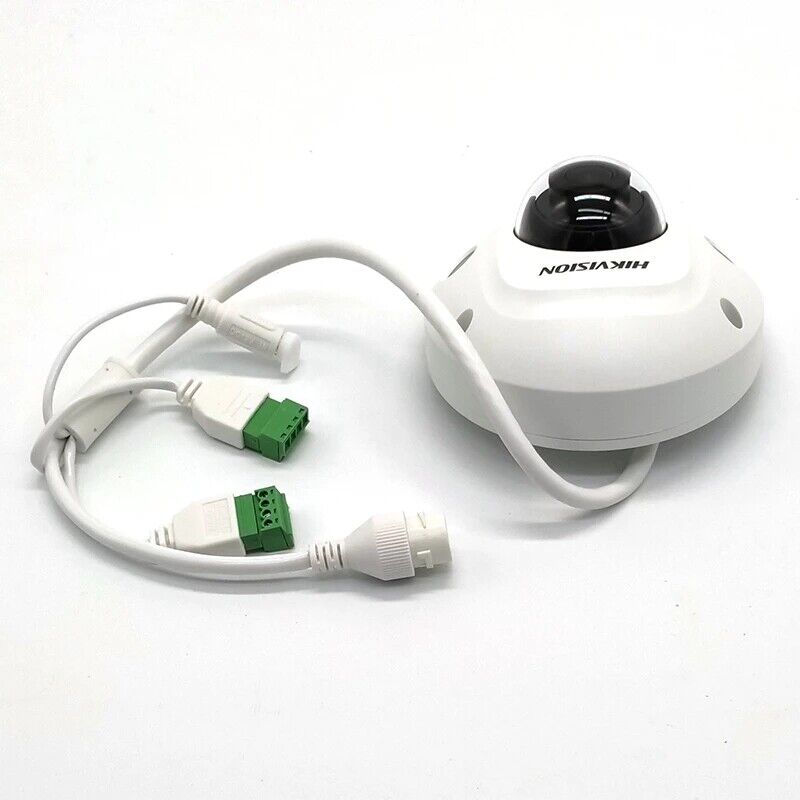

Hikvision DS-2CD2543G0-IS 4MP Outdoor Network Mini Dome Camera with Night Vision & 2.8mm Lens (Ivory)
The DS-2CD2543G0-IS from Hikvision uses a 1/3″ progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. EXIR 2.0 technology provides up to 35′ of night vision. The 2.8mm fixed lens delivers a 98° horizontal field of view. Two-way audio communication is possible thanks to a built-in microphone and a 3.5mm audio I/O. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera is compliant with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. Its enclosure is rated IP66 for outdoor use and IK08 for impact protection.
IR cut filter enables day and night functionality
EXIR 2.0 technology for up to 35′ of night vision
H.265+, H.265, H.264+, H.264, and MJPEG video compression
Triple streaming
Scalable video coding (SVC) for H.265 and H.264
Slow shutter support
Camera pivots horizontally from -30 to 30° & vertically from 0 to 75°
0 to 360° rotation range
3D-DNR
120 dB wide dynamic range
Backlight compensation
Image settings include rotate mode, saturation, brightness, contrast, sharpness, automatic gain control, and white balance
ROI (region of interest) supports one fixed region for main stream and sub stream
Line crossing and intrusion detection
General functions include one-key reset, anti-flicker, 5 streams and up to 5 custom streams, heartbeat, password protection, privacy masking, watermark, and IP address filtering
Effective noise filtering
100M self-adaptive Ethernet port
Alarm I/O
Alarm triggers include motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, and HDD error
Network-attached storage (NAS) support
Simultaneous live view for up to 6 channels
Up to 32 users at 3 host levels (admin, operator, and user)
Compatible with Internet Explorer 8 or higher, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0 or higher, iOS, Android, iVMS-4200, and Hik-Connect
CSA, FCC, CE, and cUL certified
Hikvision DS-2CD2543G0-IS Specs
Camera
| Sensor | 4 MP 1/3″ CMOS |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Maximum Aperture | f/1.6 |
| Lens Field of View | Horizontal: 98° Vertical: 55° Diagonal: 114° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.018 Lux B&W: 0 Lux |
| Shutter Speed | 1/100,000 to 1/3 Seconds |
| Camera Angle Adjustment | Horizontal: -30 to 30° Vertical: 0 to 75° |
Video
| Streaming Resolution | 1920 x 1080 at 30 fps (16 Mb/s ) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
Audio
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.722.1, G.726, MP2L2, PCM |
| Built-In Mic | Yes |
| External Audio Input | 1/8″ / 3.5 mm |
| External Audio Output | 1/8″ / 3.5 mm |
Networking
| Security | HTTPS, IP Address Filtering, Password Protection, Watermark |
| Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP |
System Integration
| Application Programming Interface (API) | ONVIF Profiles S & G, ISAPI |
| Analytics | Line Crossing Detection Intrusion Detection |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| OS Compatibility | iOS Android *As of November, 2018: Check with manufacturer for the most up-to-date compatibility |
Environmental
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Operating Humidity | 0 to 95% |
| IP Rating | IP66 |
| IK Rating | IK08 |
General
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [128 GB Maximum] |
| Pan/Tilt | None |
| Alarm I/O | 1 / 1 |
| I/O Connections | 1 x RJ45 1 x Power |
| IR Illuminators | 850 nm |
| IR Range | 35′ / 10.67 m |
| Video Management Software | iVMS-4200, Hik-Connect |
| Internal Storage | None |
| External Storage Options | NAS |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | DC: 8.5 W PoE: 10 W |
| Material of Construction | Plastic, Metal (Unspecified Type) |
| Dimensions | ø: 4.3 x H: 2.2″ / ø: 110.0 x H: 56.4 mm |
| Weight | 0.9 lb / 0.41 kg |
Packaging Info
| Package Weight | 1.25 lb |
| Box Dimensions (LxWxH) | 10 x 6.5 x 4″ |
